Floor Deck Roll Forming Machine

Item:YX51-240-960  Floor Deck Roll forming machine

Floor Deck Forming Machine Looking

superdamc.com

Floor deck production line process go through

Decoiler―――Guide device―――Roll forming machine――― Hydraulic Cut (Incuding Knife)―――Finished product rack

Device:Decoiler,Guide device, Main Roll forming machine, Hydrualic shear, Finished product rack,PLC control box,Hydrualic station,ect.

Material:

Cold –strip steel,Galvanized Sheet

Product width:960mm;

Material strength:Q245-350Mpa

Material Width: 1300mm

Thickness: 1.0mm

Device:

1,Decoiler:1 pcs

Not power

Inner diameter:460-520 mm;Out diameter:Max.1200nmm

Loading:Max. 3T; Max. width. 1300mm;

2,Shenzhen Superda Machinc Co., Ltd Main Roll forming machine

Side panel thickness: 18mm A3 steel;

Roller material,#45;

Reel:¢95mm, 45# Steel;

Main Motor:15KW* pcs

 Floor deck material Q195/Q235/Q345 Cold –strip steel,Galvanized Sheet

Total 32 pair rollers & Speed, 8-12 m/min

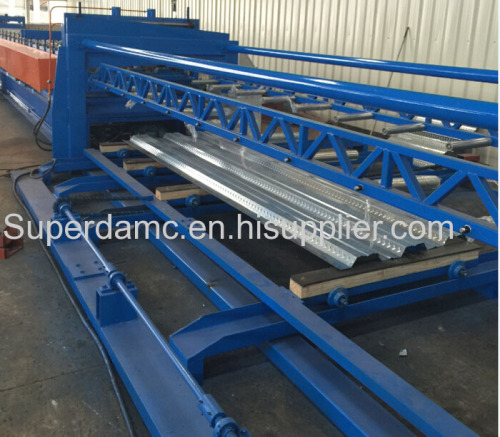

Floor deck machine photo just for reference

3, PLC Control Box:1 PC

Automatic Control Quantity and length

4. Hydraulic station and Shear

4.1 Function:Hydraulic shear  (Mould 1 set)
4.2  Shear knife materil, Cr12,Hardness HRC56-58
4.3 Hydraulic system working pressure:16MPa
4.4 Hydraulic station:5.5KW( Hydraulic shear)-

5,Finished product rack:3 Pcs, not power

electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.

Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Floor deack roll forming machine main components of the brand:
PLC control system: Siemens
Inverter: Panasonic
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.
